XVive PX Portable 3-Channel System

As a musician and/or singer, whether you’re performing live, rehearsing with a band or recording in a studio, you need to hear both yourself and the other musicians. But just as importantly, you need to have control over what you hear. Everyone hears differently from their own perspective, so everyone needs to have control over their own mix. Ideally, you’d have a monitor engineer - but in most situations it’s likely that you or another band member are controlling the monitor mix from the stage. Or a sound technician at the other end of the room has the control; but it’s hard to communicate with them during a show. Instead of having a fixed monitor mix from the board, PX allows you to set up a simple three-channel monitor mix that allows you to adjust the levels that matter to you the most - on the fly. For example, one knob could control your vocal level, one could control your instrument level, and another could be a submix of other vocals and instruments. With the PX system, control of that balance is always within reach, and always adjusted perfectly to your liking!

Features:

3-channel mixer and headphone amplifier set for in-ear monitoring

complete control over your in-ear mix thanks to 3-channel design

ideal for singers, keyboardists, drummers, guitarists, bassists and other musicians

compact and lightweight design

Cat 5 cable transmits three audio channels and 9 volt (PoE) power

PoE / Battery switch selects either Cat 5 9V PoE power supply or 2x AAA battery operation

up to 5 hours battery life with 2 AAA batteries (not included) for battery operation

the DIP switches inside the PX can be used to determine how each channel is routed: left, right or left + right

controls for volume / on-off, input 1, input 2, input 3

switch for PoE / Battery, DIP switches for L / R / L + R per channel

status LED

practical, externally accessible battery compartment with clip lock

three balanced XLR jacks for connection to your mixing console

three balanced XLR to unbalanced 6.3 mm jack adapters included in the delivery

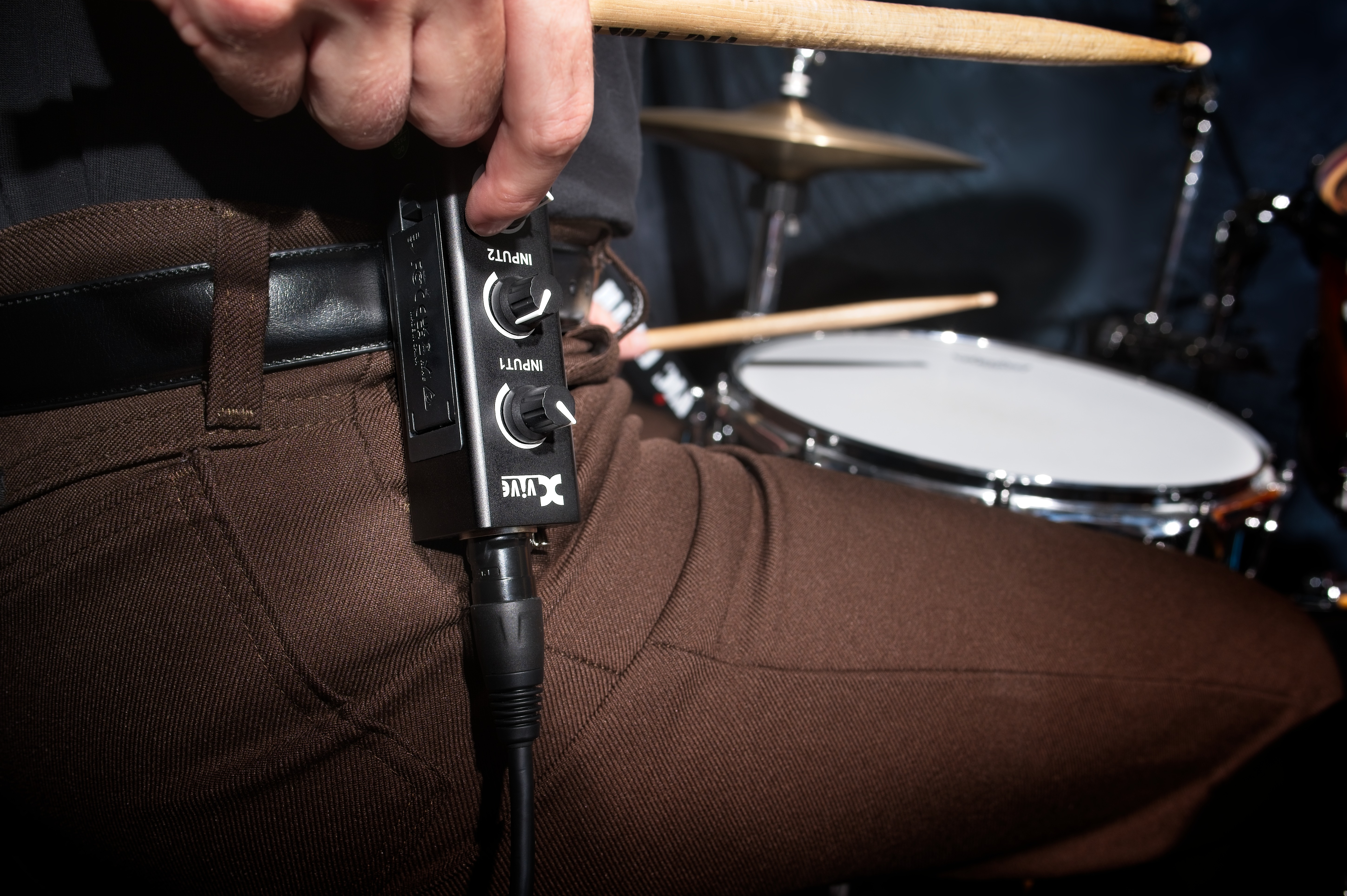

solid belt clip for fixing to belt or waistband

impact-resistant metal housing

3.5 mm stereo jack headphone output

Ethernet input

max. Output 2 x 150 mW at 16 Ohm

power supply via optional 9V DC power adapter 2.1 mm x 5.5 mm barrel plug, polarity (-) inside or 2 x AAA batteries (not included)

set includes PX-A, PX-B, EC25 cable, 3x XLR to 6.3 mm jack adapter
